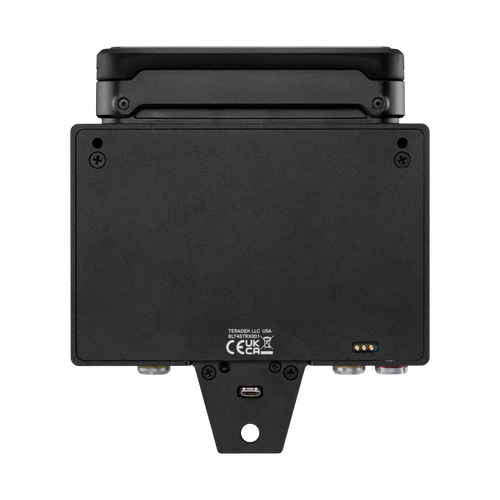

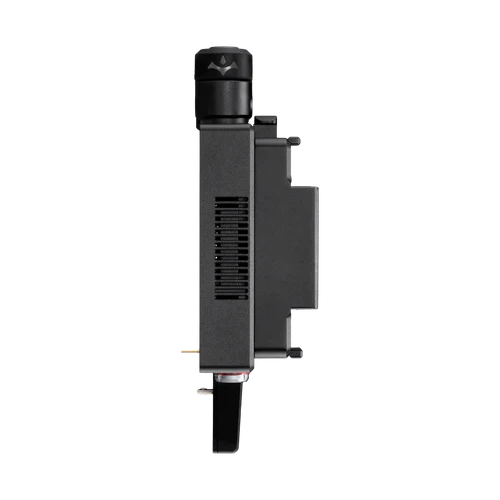

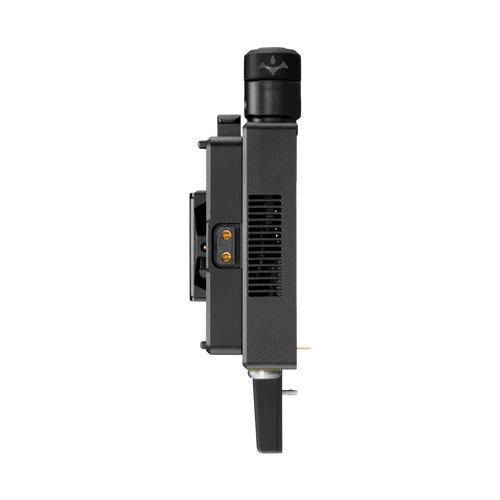

Teradek Bolt 6 Monitor Module RX (Internal V-Mount)

https://www.masterdealer.net/web/image/product.template/10/image_1920?unique=09a4bb8

Bolt 6 RX Monitor Module is a wireless video receiver that supports up to 4K30 10-bit 422 HDR video. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies.

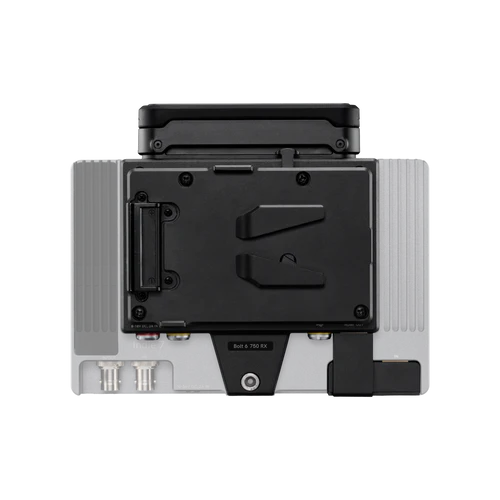

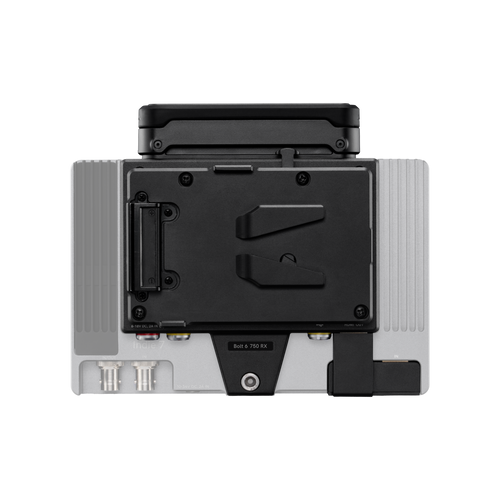

The Bolt 6 Receiver Monitor Module easily attaches to the back of SmallHD’s Cine 7, 702 Touch, and Indie 7 Smart Monitors. With this direct integration, the Bolt 6 and Smart monitor can share power and video, allowing you to reduce the amount of cables on set. With the Bolt 6 Monitor Module, Wireless Camera-Control is also possible because it integrates directly into SmallHD Smart Monitors.

Bolt 6 Monitor Module RX offers two line-of-sight options: 750 ft. and 1500 ft. Additionally, you can upgrade your set to include Gold or V-Mount Battery plates.

The 750 model includes V (vertical) Antennas. 1500 model includes both V Antennas and H (horizontal) antennas. H Antennas are designed to maximize signal robustness in the most challenging RF environments.

Optionally, the 750 model of Bolt 6 Monitor Module RX can include a permanent internal antenna to allow for reliable zero-delay transmission in a more compact and durable form factor.

R 34,900.36 34900.36 ZAR R 34,900.36

$ 1,890.00

Not Available For Sale

This combination does not exist.

Contact Us
Teradek Bolt 6 V-Mount Internal

Terms and Conditions
Please proceed to place your order. Once your payment reflects your product will be shipped directly to you.

Product Specifications

What's In The Box?

  • 1 x Bolt 6 Monitor Module 750 RX V-Mount
  • 1 x HDMI Adapter Bolt 4K RX Monitor Module

Video:

Video Outputs

  • 2 x HDMI 1.4b Type-A receptacle

SDI Ancillary Data Support

  • Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.

Color Sampling

  • SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit

Delay Tx To Rx

  • <0.001sec

Supported Resolutions:

  • 4Kp 23.98/24/25/29.97/30
  • 1080p 23.98/24/25/29.97/30/50/59.94/60
  • 1080psf 23.98/24/25/29.97/30
  • 1080i50/59.94/60
  • 720p50/59.94/60

Video Processing:

Video Compression

  • Visually Lossless

Color Correction

  • None

Audio Processing:

Audio Compression

  • 48kHz 24-bit PCM

Outputs:

Audio Output

  • Embedded HDMI Audio Output (2 Channel)

Physical:

Dimensions

  • 122mm x 94mm x 27mm

Weight

  • 292g (10.3oz)

Construction

  • Milled Aluminum(Chassis) and regulation-compliant PCB

Mountability

  • SmallHD 7" Monitor

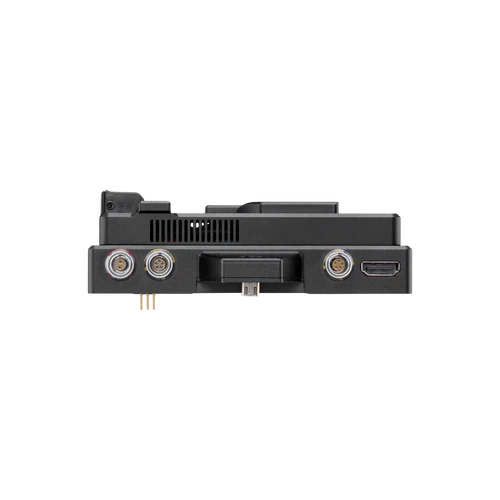

Interfaces:

Configuration Interfaces

  • SmallHD Monitor UI

Mobile App

  • Bolt App

Usb Interface Functionality

  • SmallHD Monitor UI
  • 2x 5pin Locking Connector CCU (Host)

Bluetooth

  • Via SmallHD Monitor

Network:

Antennas

  • 5x Internal 2dBi antennas

Wireless

  • DFS Frequencies: 5.270 ~ 5.670 GHz Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, and 5.945 ~ 6.425GHz

RF Channel Selection

  • Auto, Manual

Encryption

  • AES-256, RSA-1024 key exchange

RF Power

  • 22 dbm EIRP

Range

  • Up to 750 ft, line of sight

Unicast Multicast

  • Can connect one Transmitter to up to 6 Receivers

Noise Rejection

  • Can coexist with WiFi and 5GHz cordless phones
  • Can operate up to 6 sets in same location

Interoperability Compatibility

  • Can receive wireless video from all ranges of Bolt 4K XT and Bolt 4K LT transmitters (limited by shortest range device)

Power:

Power Input

  • 2-Pin Circular locking Connector 6-18 VDC

Battery

  • None, optional Gold or V mount battery plate

Nominal Power Consumption

  • 7 Watts

Environmental:

Operating Temperature

  • 0-40℃
